SIM card reader dispenser MT168

Home > PRODUCTS > Card Dispensers > SIM card dispenser MT168

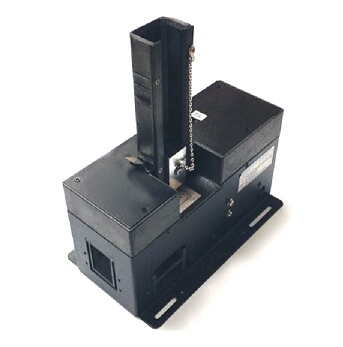

SIM card dispenser MT168

MT168 V1.0 card dispenser is designed to read/write and dispense SIM cards, Provide underlying support for the peripheral equipment, Transfer data to the application terminal through the communication protocol, applied for automatic SIM cards selling machine.etc.

Feature Applications Specifications Download

Feature

Dispense and receive SIM cards from card box.
Equipped with PC/SC module, read and write of SIM/CPU cards.
Communication interface:RS232、USB.
Monitor for card shortage, card empty, card box full and other status of machine.
Easy operation for load and unload cards.

Applications

● Card Dispensing and Issuing Machines, Parking Systems, Parking Meters, Parking Lot

● Self-service Kiosk Terminals, Entry/Exit Control Systems, Card Encoder with Hopper

● Automatic Loan-application Machines, VTMs (Virtual Teller Machines)

● Security and Access Control Terminals, Gift Card Dispensers

Specifications

1、Power supply	DC 24V±5%
2、Current consumption	Static current 0.1A peak current 1.5A
3、Speed of dispense card	About one piece per minute (only dispense, not include read and write operation time)
4、Interface	RS-232C USB
5、Card reading mode	USB（support PC/SC protocol）
6、Card specification	Length：25±0.1mm Width：15±0.1mm Thickness：0.76±0.08mm
7、Load the card quantity	120pcs(standard:0.76mm）
8、Alarm for cards shortage	About 20pcs （standard:0.76mm）
9、Alarm for recycle box	18～22pcs （standard:0.76mm）
10、Working life	500,000 times of operation
11、Success rate of reading cards：	>99.8%
12、Working environment:	Working: 0℃～50℃, 0～90 % RH ( non-condensing ) Storage: -25℃～60℃, 0～95 % RH ( non-condensing )
13、Update online	Support IAP download online
