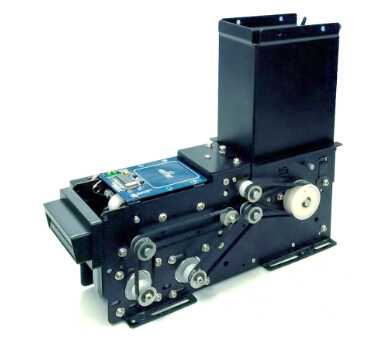

Card dispenser & reader MT166-RF
Card dispenser & reader MT166-RF

The enhancement type card dispenser (collector) MT166 designed of Using large scale integrated circuit with reliable structure, this product specially designed for automatic card dispensing(collecting), This kind of card dispenser has function controlled card dispensing and collecting.  Support RFID card operation, Stepper motor is used to provide power transmission.  It has properties with high speed and high reliability, long lifetime. It Can be widely used in many occasions such as parking management system, automatic card vending machine and ticket vending machine

Feature

● Compact and light, high reliability and durability

● For contactless IC card read and write (optional)

● Custom industrial design, with stepper motors

● Card detection mechanism, dust & weather resistant

● Card thickness & dispensing speed adjustment

● Error card capture and remaining card indication

● Extension stackable cards 180 pcs/hopper (0.8mm/card)

● Extension card retractable bin

● Read and write Mifare 1 card

Applications

● Card Dispensing and Issuing Machines, Parking Systems, Parking Meters, Parking Lot

● Self-service Kiosk Terminals, Entry/Exit Control Systems, Card Encoder with Hopper

● Automatic Loan-application Machines, VTMs (Virtual Teller Machines)

● Security and Access Control Terminals, Gift Card Dispensers

Specifications

1Card support

Size 54×86mm thickness 0.3-2.0mm (adjustable

Loading capacity 180PCS,0.80mmextensible

The speed of cards dispensing is greater than 1 card per sec

Capacity of recycle box25 cards0.76mm

2 Recovery card device

The service life of the motor: over 2 ×106 dispense /collect cards

3 Electrical source parameter

working voltageDC24V (Compatible DC12V)

maximum current2.0A Max/24V

4 Communication interfaceRS232 (RS485/TTL optional)

5 Environmental parameter

working temperature-35+60

Storage temperature-40+70

Relative humidity 090% RH (no condensing)

Storage humidity90%RH

6 Dimensions232x222x90.5mm (Max)
