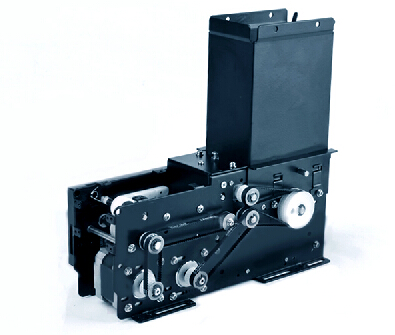

The enhancement type card dispenser (collector) MT166 designed of Using large scale integrated circuit with reliable structure, this product specially designed for automatic card dispensing(collecting), This kind of card dispenser has function controlled card dispensing and collecting. Stepper motor is used to provide power transmission. It has properties with high speed、high stability、high reliability、long lifetime. It Can be widely used in many occasions such as parking management system, automatic card vending machine and ticket vending machine, highway card dispenser system, centralized card dispensing and collecting and so on.
● Compact and light, high reliability and durability
● For contactless IC card read and write (optional)
● Custom industrial design, with 2 stepper motors
● Card detection mechanism, dust & weather resistant
● Card thickness & dispensing speed adjustment
● Error card capture and remaining card indication
● Extension stackable cards 180 pcs/hopper (0.8mm/card)
● Extension card retractable bin
● Card Dispensing and Issuing Machines, Parking Systems, Parking Meters, Parking Lot
● Self-service Kiosk Terminals, Entry/Exit Control Systems, Card Encoder with Hopper
● Automatic Loan-application Machines, VTMs (Virtual Teller Machines)
● Security and Access Control Terminals, Gift Card Dispensers
1、card support：
Size 54×86mm thickness 0.3-2.0mm (adjustable）
Loading capacity： 180PCS，0.80mm（extensible）
The speed of cards dispensing is greater than 1 card per sec
Capacity of recovery tank：25 cards（0.76mm）
2、 recovery card device：
The service life of the motor: over 2 ×106 dispense /collect cards
3、 electrical source parameter： working voltage：DC24V maximum current：2.0A Max/24V
4、 Communication interfac：RS485 (RS232) / TTL
5、 Environmental parameter：
working temperature：-40℃～+60℃
Storage temperature：-50℃～+85℃
Relative humidity： 0～90% RH (no condensing)
Storage humidity：≤90%RH
6、 dimensions：232x222x90.5mm (Max)
