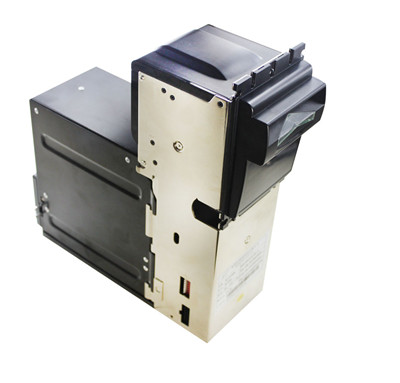

Bill Acceptor MT500

The MT500 is designed with advanced sensor technology to provide maximum currency validation. It is provided with a stacker and removable security cassette and anti-stringing function. It is used in different ways such as Kiosk Terminals. Payment Systems, Vending Machines, Gaming Machines and Parking Systems...

Feature Applications Specifications Download

Feature

●High reliability and durability

● Advanced sensor technology to provide maximum currency validation

●Four-way bill insertion (single feed), fast transaction time, auto-calibrating, reduce bill jam

●Backload design with high compatibility

●Stacker and removable security cash-box (lockable)

●Anti-stringing (fishing) function, easy maintenance

●IAP online update, communication with CCNET protocol

Applications

●ATMs, CDMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems

●Fuel Dispensers, CNG Dispensers

Specifications

CATEGORY	Bill Acceptor
CURRENCY SUPPORT	Customized
CASH-BOX CAPACITY	1000 Bills
BILL WIDTH	Max 78mm
BILL LENGTH	Max 160mm
TRANSACTION TIME	<3 Second
ESCROW	1 Pcs
BILL INSERTION	Four-way
M.T.B.F	1500000 Cycles
INTERFACE	Interface: RS-232 Protocol: CCNET(Customized) Baud Rate: 9600bps
SOFTWARE UPDATE	Online IAP Download
OPERATING SYSTEM	Windows 98, Me, 2K, XP, 2003, Vista and Linux
POWER SUPPLY	DC12V ±5%
CURRENT	<2A
WORKING TEMPERATURE	-40-+65°C
WEIGHT	With Cash-box Approx 3100g
