ID Card and Finance IC Card Reader

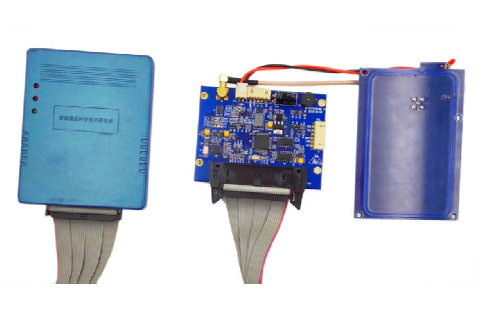

MT625V502f3 is the ID card and Finance IC card reader, the design of this product is well in line with GA467-2013, ISO14443, ISO7816 standard. There are four PSAM slot. And what is the most important is the product has passed PBOC Authentication 3.0. The characters of this product are with high durability and security, well environmental adaptability and wide range of application fields. It can be used in Finance, Electricity, telecommunication, transportation, pertrification and some other terminal equipment of the industrial fields.

Feature Applications Specifications Download

Feature

♦ USB interface, PCSC communication protocol, and the concrete command definitions show in MT625V5 RF card reader communication protocol V1.0；

♦ Support type A/B card reading and writing which is compliant with ISO14443 standard.

♦ Support type A/B card reading and writing which is compliant with ISO7816 standard.

♦ Meet the requirements of the Ministry of Public Security file Interface technology specifications of Resident ID card verification safety controlling module(GA467-2013). Design with the safe SAM.

Applications

●Electric Vehicle Charging Points/Piles & Stations, Fuel Dispensers, CNG Dispensers

●ATMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems

●POS Terminals, ID Terminals, Security and Access Control Terminals, Credit Authorization Terminals

Specifications

CARD TYPE	DESCRIPTION
RF CARD （TYPE A CPU CARD）	ISO14443
RF CARD （TYPE B CPU CARD）	ISO14443
RF CARD mf1(S50,S70)	ISO14443
SIM CARD PSAM	ISO7816 A,B
READING AND WRITING PERFORMANCE
DISTANCE	≧5cm （RELATED OF ENVIRONMENT AND CARD）
FREQUENCY	13.56MHz±7K
CUMMINICAITON SPEED	106（DEFAULT）、212、424、848 Kbps
CPU CARD APDU MAX LENGTH	READE 270 BYTES, WRITEH 260 BYTES
WORK INSTRUCTION
INDICATOR	LED1、LED2 COMMAND CONTROLLING
BUZZER	COMMAND CONTROLLING
ELECTRICITY SPECIFICATION
WORKING VOLTAGE	USB DC 5V±5%
WORKING CURRENT	≤400mA
STATIC CURRENT	≤160mA
ENVIRONMENT CONDITION
RESERVATION TEMPERATURE	-40~+75℃（NO CONDENSATION）
WORKING TEMPERATURE	-40~+65℃（NO CONDENSATION）
