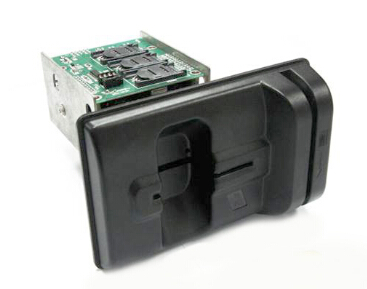

Industrial Card Reader MT318-150

This product is designed with a lot of integrated circuits and a reliable structure, to support magnetic card reading, IC card and RFID card reading and writing. This model is safe and reliable, has good dust-proof function and automatic card lock and ejection function. The circuit interface is flexible and can be designed based on customers’ requirements. It is widely used in industrial payment equipments, such as terminal equipments of petroleum, petrochemical, telecommunications, finance, transportation and other industrial fields.

Feature Applications Specifications Download

Feature

●Compact & light, high reliability &durability

●Support magnetic card (ISO7810 & ISO7811)

●Support contact IC card (ISO17816)

●Support contactless IC card (ISO14443 TYPE A & B), optional card operation type

●Support PSAM & ESAM card (ISO7816), optional PSAM and ESAM

● Suppliedwith4 SIM card slots (3 PSAM&1ESAM)

● With automatic card lock & eject function, clog-proof, dust-proof, good environmental adaptability

● Shock-proof design to avoid card ejection by external force

●Card ejection in emergency

●Various interface (customized)

Applications

●Fuel Dispensers, CNG Dispensers, Electric Vehicle Charging Points/Piles & Stations

●ATMs, CDMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems

Specifications

CATEGORY			Manual Dip
CARD TYPE			Magnetic Cards Contact IC Cards Contactless IC Cards
MAGNETIC CARD	ISO/IEC 7810/1811	Track 1	/
		Track 2	R
		Track 3	R
IC CARD	ISO/IEC 7816		R/W
	PSAM/ESAM
	EMV		Level 1 Compliant
CONTACTLESS CARD	ISO14443 Type A & B &Mifare		R/W
LIFETIME			>500000 Cycles
CARD LOCK & EJECT MECHANISM LIFETIME			>500000 Cycles
INTERFACE			RS-232
POWER SUPPLY			DC8-15V ± 5%
CURRENT			Current: ≤50mA Max: ≤500mA
WORKING TEMPERATURE			-40-+70°C
WEIGHT			Approx 345g
REMARK			With Shutter
