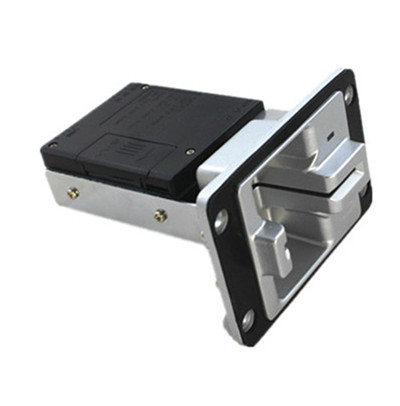

Manual card reader MT188-1
Manual card reader MT188-1

These are dip types of manual card readers. They excel in various fields, including ATMs, Kiosk Terminals, Self-service Terminals, Vending Machines, Fuel Dispensers, Gaming Machines, Electric Vehicle Charging Piles, POS terminals, Car Parking Payment Machines, Security and Access Control Terminals, and other ID Terminals etc.

Feature



Compact &  light, high reliability & durability

●Support magnetic card (ISO7810 & ISO7811)

●Support contact IC card (ISO7816)

●Support PSAM & ESAM card (ISO7816)

Supplied with 1 SIM card slot (PSAM)

Clog-proof, dust-proof, good environmental adaptability

Various interface (customized)

With multi bezel (optional)

EMV Level 1 and PBOC approved

Applications



ATMs, CDMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems

Fuel Dispensers, CNG Dispensers

Specifications

CATEGORY

Manual Dip

CARD TYPE

Magnetic Cards

Contact IC Cards

MAGNETIC CARD

ISO/IEC 7810/1811

Track 1

R



Track 2

R

R

Track 3



R

IC CARD

ISO/IEC 7816

R/W

PSAM/ESAM

EMV

Level 1 Approved

CARD READING DIRECTION

Options for reading by card inserting or ejection

CARD INSERTING DIRECTION

Magnetic strip on right side, dual-side reading

HI-CO & LOW-CO CARD READING

Support

LIFETIME

>500000 Cycles

INTERFACE

RS-232

POWER SUPPLY

+5V DC ± 5%

CURRENT

Current: ≤50mA

Max: ≤150mA

WORKING TEMPERATURE

-40-+70°C

WEIGHT

With Plastic Bezel: Approx 137g

With Metal Bezel: Approx 353g

REMARK

With shutter & multi bezel(optional)
