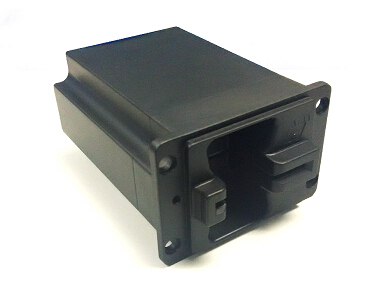

Manual card reader MT189

These are dip types of manual card readers. They excel in various fields, including ATMs, Kiosk Terminals, Self-service Terminals, Vending Machines, Fuel Dispensers, Gaming Machines, Electric Vehicle Charging Piles, POS terminals, Car Parking Payment Machines, Security and Access Control Terminals, and other ID Terminals etc.

Feature Applications Specifications Download

Feature

●Compact & light, high reliability & durability

●Support magnetic card (ISO7810 & ISO7811)

●Support contact IC card (ISO7816)

●Support contactless IC card (ISO14443 Type A & B)

●Support PSAM card (ISO7816)

●Supplied with 2 backside SIM card slots (PSAM)

●Clog-proof, dust-proof, anti-vandal, environmental adaptability

●Various interface (customized)

●Secure chipset & data encryption (optional)

Applications

● ATMs, CDMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems

● Fuel Dispensers, CNG Dispensers

Specifications

CATEGORY			Manual Dip
CARD TYPE			Magnetic Cards Contact IC Cards Contactless IC Cards
MAGNETIC CARD	ISO/IEC 7810/1811	Track 1	R
		Track 2	R
		Track 3	R
IC CARD	ISO/IEC 7816		R/W
	PSAM/ESAM
	EMV		Level 1 Compliant
CONTACTLESS IC CARD	ISO14443 Type A & B & Mifare		R/W
CARD READING DIRECTION			Options for reading by card inserting or ejection
CARD INSERTING DIRECTION			Magnetic strip on right side
HI-CO & LOW-CO CARD READING			Support
LIFETIME			>500000 Cycles
INTERFACE			RS-232
POWER SUPPLY			DC5V ± 5%
CURRENT			Current: ≤60mA Max: 150mA
WORKING TEMPERATURE			-40-+70°C
WEIGHT			Approx 373g
REMARK			With Shutter
