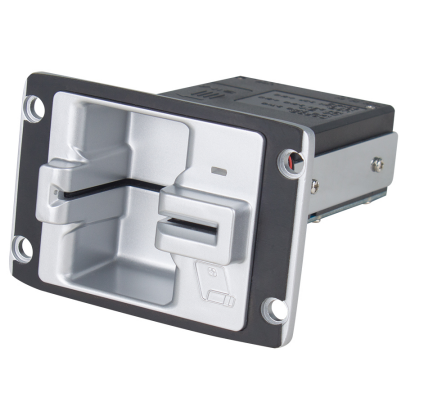

Manual Card Readers MT188-2
Manual Card Readers MT188-2





MINGTE'S manual full insertion card readers can read ISO7810/7811 magnetic strip card, read & write ISO7816 smart card and ISO14443 Type A & B contactless cards. They excel in various fields, including Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, and Vending Machines etc.

Feature





●Compact & light, high reliability & durability

●Support magnetic card (ISO7810 & ISO7811)

●Support contact IC card (ISO7816)

●Support PSAM & ESAM card (ISO7816)

●Supplied with 1 SIM card slot (PSAM)

●Clog-proof, dust-proof, environmental adaptability

●Various interface (customized)

●With multi bezel (Optional)

●EMV Level 1 and PBOC approved



Applications





Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines

Specifications





CARD TYPE

Magnetic Cards

Contact IC Cards

MAGNETIC CARD

ISO 7810/7811

Track 1

R



Track 2

R

R

Track 3



R

IC CARD

ISO7816

R/W

PSAM/ESAM

EMV

Level 1 Approved

CONTACTLESS CARD(OPTIONAL)

ISO14443 TYPE A & B & MIFARE

R/W

CARD READING DIRECTION

Options for Reading by Card Inserting or Ejection

CARD INSERTING DIRECTION

Magnetic Strip on Right Side, Dual-side Reading

HI-CO & LOW-CO CARD READING

Support

LIFETIME

>500000 Cycles

INTERFACE

RS-232

POWER SUPPLY

DC5V ± 5%

CURRENT

Current: ≤50mA(5V)

Current: ≤150mA(5V)

WORKING TEMPERATURE

-20-+55°C

WEIGHT

With Plastic Bezel: Approx 137g

With Metal Bezel: Approx 353g

REMARK

With Shutter & Multi Bezel(Optional)
