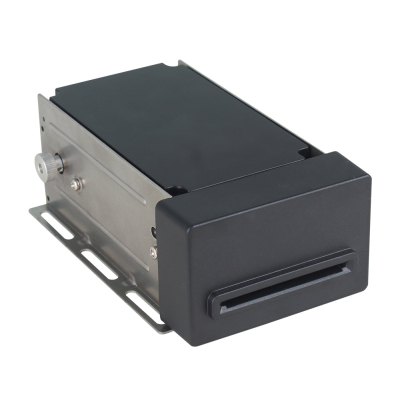

MINGTE’s compact motorized card readers are developed with space saving, high reliability & security, anti-skimming and power failure protection features. They can read ISO7810/7811 magnetic strip card, read & write ISO7816 smart card and ISO14443 Type A & B contactless cards. They excel in various fields, including Kiosk Terminals, Fuel Dispensers, , CNG Dispensers, Parking Systems, Ticketing Machines, and Vending Machines etc.
● Compact & light, high security & durability, advanced mechanical structure
●Support magnetic card (ISO7810 & ISO7811)
●Support contact IC card (ISO7816)
● Support contactless IC card (ISO14443 TYPE A & B)-optional
●Support PSAM & ESAM card (ISO7816)
●Supplied with 1 to 3 SIM card slot (PSAM)
●Full security shutter, with anti-skimming & card status detection
●Front & back side card eject options, with power failure protection function (optional)
●Clog-proof, dust-proof, environmental adaptability
●Various interface (customized)
●With multi bezel (Optional)
●EMV Level 1 and PBOC approved
●Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines
|
CARD TYPE |
Magnetic Cards Contact IC Cards Contactless IC Cards |
|||
|
MAGNETIC CARD |
ISO 7810/7811 |
Track 1 |
R |
|
|
Track 2 |
R |
|||
|
Track 3 |
R |
|||
|
IC CARD |
ISO7816 |
R/W |
||
|
PSAM/ESAM |
||||
|
EMV |
Level 1 Approved |
|||
|
CONTACTLESS CARD(OPTIONAL) |
ISO14443 TYPE A & B & MIFARE |
R/W |
||
|
LIFETIME |
>500000 Cycles |
|||
|
INTERFACE |
RS-232 |
|||
|
POWER SUPPLY |
DC12V ± 5% |
|||
|
CURRENT |
Current: ≤2A |
|||
|
WORKING TEMPERATURE |
-10-+55°C |
|||
|
WEIGHT |
Approx 485g |
|||
|
REMARK |
With Shutter & Multi Bezel(Optional) |
|||
