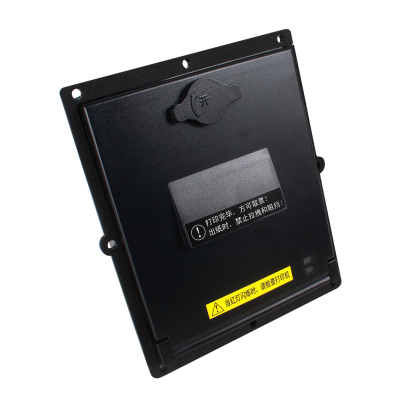

Receipt Printers PT100
Receipt Printers PT100



    PT100 is a fast (up to 120mm/sec) thermal industrial receipt printer with 58mm paper width and highly reliable automatic cutter. The printer is specially designed for fuel & gas station environment with IP54 compliant. It has automatic cutting, self-check, paper feeding and error status notifications functions. It is widely used in various fields, including Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, and Vending Machines etc.

Feature



●High reliability and durability

●Thermal printing

●Printing width: 48/54mm (options by commands)

●Printing with high graphic quality (speed up to 120mm/sec)

●Highly reliable automatic cutter, over 1000000 cuts

●With self-test and full status monitor function

●Various interface (customized)

●Weather-proof (IP54 compliant), dust-proof, environmental adaptability

●Specially designed for fuel & gas station environment

Applications





Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines

Specifications



PRINTING METHOD

Thermal Printing

PRINTING RESOLUTION

384/432 dpi(8 dots/mm)

PRINTING SPEED

>120mm/sec

PRINTING WIDTH

48/54 mm

PRINTING PAPER

External Diameter: 50mm

Internal Diameter: 12.5mm

Paper Width: 57.5±0.5mm

Paper Thickness: 65±0.5um

CHARACTER PER LINE

12x24 dots(32 characters)

EMULATION

ESC/POS

INTERFACE

RS232

BAUD RATE

9600/19200bps

POWER SUPPLY

DC24V ± 5%

CURRENT

2A(+24V)

DATA BUFFER

8K

OPERATING SYSTEM

Windows

WORKING TEMPERATURE

-40-+70°C

PRINTING HEAD LIFE

100KM/100M Pulses

WEIGHT

Approx 642g

REMARK

Weather-proof
