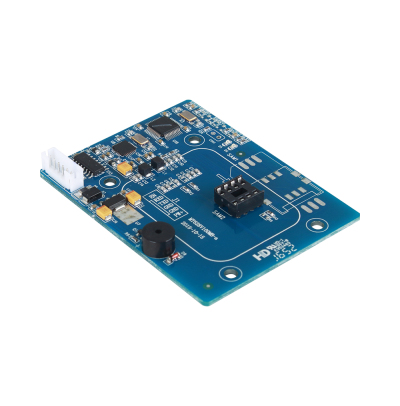

Серия считывателей бесконтактных карт MINGTE MT626 работает с картами стандарта ISO14443 Type A 13.56МГц. Она широко применяется в зарядных станциях, платежных терминалах, платежных терминалах самообслуживания на АЗС и ГЗС, парковочных системах, билетных автоматах, торговых автоматах и т. п.
●Support contactless IC card (ISO14443 TYPE A)
●Support S50 & S70 (Mifare)
●Support city card of different areas
●Various corresponding and custom design
●Software updated via RS232 supported
●Carefully-designed antenna size for most installation design
●Various installation dimensions design, temperature-proof
●Optional IP54 plastic enclosure
●Electric Vehicle Charging Points, Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines, ID Terminals
|
CARD TYPE |
Contactless IC Cards |
|
|
CONTACTLESS CARD |
ISO14443 Type A & MIFARE |
R/W |
|
CARD READING DISTANCE |
4-8cm and 106Kbit (Related to Cards and Installation Environment) |
|
|
INTERFACE |
RS-232/TTL(uart) |
|
|
COMMUNICATION FREQUENCY |
9600/38400/57600/115200bps |
|
|
ANTENNA |
PCB Antenna |
|
|
RFID FREQUENCY |
13.56MHz |
|
|
COMMUNICATION SPEED |
106Kbit(212Kbit & 424Kbit pps Commands Optional) |
|
|
SECONDYARY DEVELOPMENT |
VC, Linux |
|
|
OPERATING SYSTEM |
Windows 98, Me, 2K, XP, 2003, Vista and Linux |
|
|
DATA STORAGE CAPACITY |
Standard Capacity inside Reader: 4k bytes |
|
|
STATUS DISPLAY |
LED Indication Light for Power & Communication status |
|
|
POWER SUPPLY |
DC5V ± 5% |
|
|
CURRENT |
Current: ≤25mA(5V) Current: ≤130mA(5V) |
|
|
WORKING TEMPERATURE |
-40-+65°C |
|
|
WEIGHT |
Approx 15g |
|
